The Transit-150 van is widely praised for its reliability and versatility. The key to maintaining its fuel efficiency and controlling emissions is regular maintenance, and one of the key components that needs to be replaced is the oxygen sensor of Model 234-5107. This article will guide you through the process of replacing oxygen sensors in your Transit-150 vehicle to ensure optimal engine performance and control emissions.

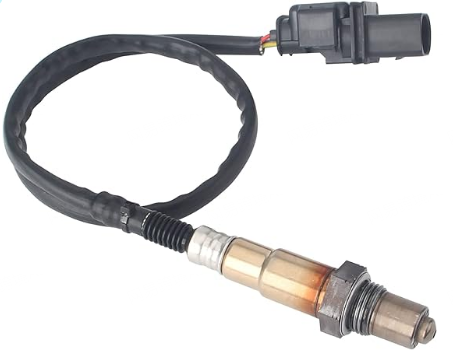

Learn about the oxygen sensor model 234-5107

The oxygen sensor model 234-5107 plays a crucial role in the emission control system of Transit-150 vehicles. This sensor monitors the oxygen content of the exhaust gas and feeds the data back to the engine control unit (ECU). Based on these data, the ECU adjusts the mix of air and fuel to achieve efficient combustion and reduce harmful emissions. A properly functioning oxygen sensor helps ensure that the engine is operating at optimum performance while complying with environmental regulations.

Identify signs of failure of oxygen sensor model 234-5107

Timely detection of oxygen sensor model 234-5107 faults is very important for taking appropriate measures. Some common signs that a sensor is failing include reduced fuel efficiency, erratic idle speed, and a check engine fault light coming on. In addition, the Transit-150 may experience reduced engine performance and increased exhaust emissions. Keeping an eye on these signs can help detect problems with the oxygen sensor model 234-5107 early and prevent further engine damage.

Procedure for replacing oxygen sensor model 234-5107

To replace the oxygen sensor model 234-5107 in the Transit-150, follow these steps:

Prepare the vehicle: Park the Transit-150 on a flat surface and turn off the engine. Wait for the engine to cool before starting the replacement process.

Positioning sensor: The oxygen sensor model 234-5107 is usually located in the exhaust pipe, in front of or behind the catalytic converter. You can consult the repair manual or consult a professional to determine the exact location of the sensor.

Disconnect the wire: Carefully remove the plug of the wire connecting the oxygen sensor model 234-5107 to the harness. Gently press the label and unplug it.

Remove the sensor: Unscrew the sensor from the exhaust pipe using the oxygen sensor socket and ratchet. If the sensor is difficult to disassemble due to corrosion and other reasons, penetrant oil can be used to assist.

Install new sensor: Screw the new oxygen sensor model 234-5107 into the exhaust pipe by hand, then secure it using the oxygen sensor socket and ratchet.

Reconnect the wire connection: Once the new sensor is in place, reconnect the harness plug of the sensor.

Check and start the vehicle: check whether the engine failure light is off, if there is no fault code associated with the oxygen sensor, the replacement is successful. Start the vehicle and see if the engine is running smoothly.

In SUMMARY:

The replacement of the oxygen sensor model 234-5107 is important to improve the fuel efficiency and emission control of the Transit-150. By following the steps provided in this article to make a timely replacement, you can ensure that your Transit-150 continues to run smoothly and efficiently while complying with environmental regulations. Regular inspection and replacement of oxygen sensors will keep your Transit-150 in top condition for years to come.
