Where is the Front Oxygen Sensor of Passat V6? VW Passat Oxygen Sensor

Where is Passat V6 front oxygen sensor

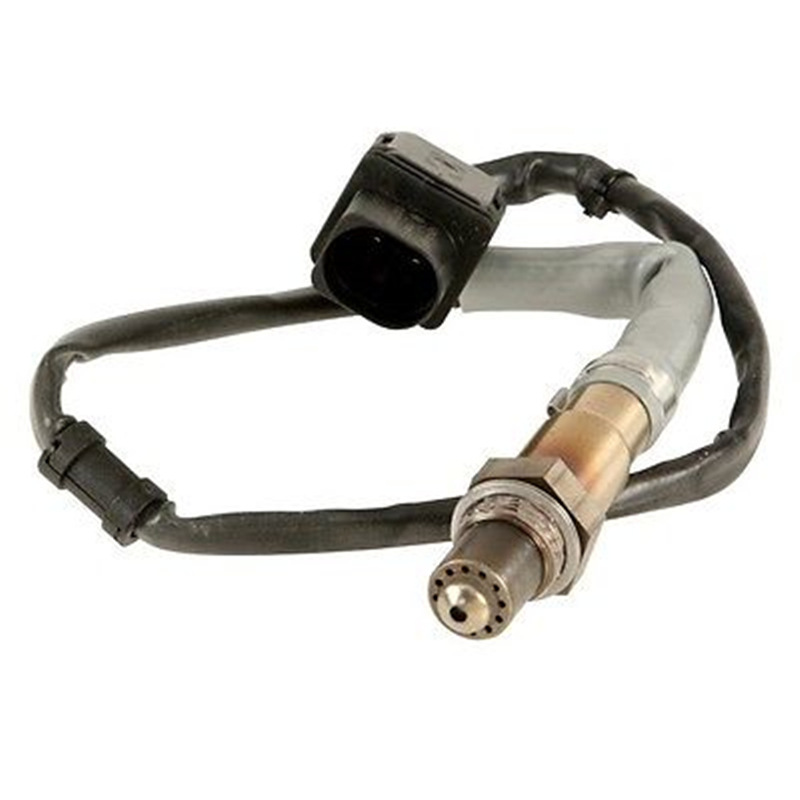

The Passat V6 front oxygen sensor is located on the exhaust manifold, near the left side of the engine compartment. It can be identified by its black or gray housing and a small wire leading to it from the catalytic converter.

The Passat V6 has several oxygen sensors

The oxygen sensors are positioned on the exhaust manifold, with one located in front of the three-way catalyst and the other behind it.
The front oxygen sensor detects the oxygen content in the exhaust gas, which is then fed back to the electronic control unit (ECU) for the purpose of adjusting the air-fuel ratio.
The primary role of the post-oxygen sensor is to ascertain whether the three-way catalytic converter can operate efficiently.

What are the guidelines for finding a Passat V6 front oxygen sensor

To locate the front oxygen sensor on your particular Passat V6, you may want to consult your vehicle’s owner’s manual or a repair manual. These resources should provide detailed information on the location of all of the sensors in the exhaust system, including the front oxygen sensor.

How to Replace the Front Oxygen Sensor?

Replacement of the front oxygen sensor is a relatively simple job that can be performed by a DIY enthusiast. The following steps outline the process:

Park the car on a flat surface and ensure that it is securely supported.
Open the engine hood and disconnect the negative terminal of the battery.
Remove the intake manifold and inspect the sensor for damage or debris.
Unscrew the retaining bolt and remove the old sensor.
Clean the sensor seat and install the new sensor securely with the retaining bolt.
Connect the negative terminal of the battery and start the engine to check for any issues.
Important Precautions

Different sensors are installed in different locations.

The position of the Passat sensors is as follows:

  1. Oxygen sensor: The oxygen sensor is installed on the exhaust pipe to monitor the gas after combustion, determining whether the engine combustion is sufficient and whether the mixing degree is too dilute or too concentrated;
  2. Wheel speed sensor: The wheel speed sensor is usually located on the front brake disc. It mainly collects the speed of the car to determine if the car is slipping. Therefore, a special sensor for collecting the speed of the car’s wheels is used to complete this work, generally installed on each wheel hub. Once the sensor is damaged, the ABS will fail;
  3. Water temperature sensor: The water temperature sensor is installed next to the thermostat, converting the temperature of the coolant into an electrical signal. At low temperatures, it increases fuel injection volume or ignition advance angle, while at high temperatures, it prevents explosion and delays ignition advance angle;
  4. Intake pressure sensor: Generally installed on the throttle valve. As its name suggests, the intake pressure sensor senses a series of resistance and pressure changes with engine speed and load, converting them into voltage signals for the ECU to correct fuel injection volume and ignition timing angle. If it fails, it can cause difficulty in ignition, unstable idle, and weak acceleration.

Sensors have different functions and are installed in different locations.
